Product Overview
Build a rear towing connection around your truck and trailer. The Don Dens pintle hitch plate assembly combines a 35.5-inch-wide x 18.5-inch-high, 3/4-inch steel plate with configurable pintle hook, finish, lighting and trailer connection options.
Call 218-384-3734 to configure and order or request a pintle plate quote. Have your truck frame measurements, trailer connection requirements and preferred configuration ready. Please confirm current lead time and shipping before ordering.
Choose your pintle plate configuration
| Plate size | 35.5 in wide x 18.5 in high; 3/4 in steel |
|---|---|
| Pintle hook | PH45 45-ton, PH50 50-ton, or PH55 50-ton with 10-hole mounting |
| Pintle type | Standard or air compensated |
| Assembly level | Raw plate, welded, or welded and painted |
| Lighting | No lights or LED light kit |
| Gladhands | Standard connections or 45-degree upgrade |
| Pintle height options | 24.5 in or 27 in; confirm measurement reference and fit with our team |
What each assembly level includes
- Raw plate: plate, gussets, D-ring mounts, light rings and 7-way/gladhand mount supplied for fabrication. The installer completes the welding.
- Welded: D-ring mounts, light rings and 7-way/gladhand mount welded to the plate. Gussets are supplied loose.

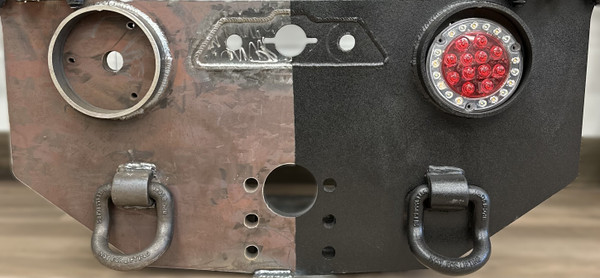

- Welded and painted: the welded assembly with a black painted finish. Gussets are supplied loose.
Installation is required for every assembly level. The installer must fit and weld the plate and gussets to the truck. A welded assembly is not a bolt-on, ready-installed hitch.
Included connections and available components
All assemblies include two B5055 1-inch angled D-rings, a WA15-720 7-pin trailer socket, a WA11451 red emergency gladhand and a WA11452 blue service gladhand. Air-compensated configurations also include the PH50ACMK air chamber and plunger kit. The optional LED package uses two M85427R-YCL 5.5-inch stop/turn/tail and amber flasher lights.
Need the electrical connections? See our pintle plate wiring harness. Custom gladhand mounting arrangements are available by request.
Confirm fit before ordering
- Truck frame width, available mounting space and rear clearance.
- Trailer drawbar/lunette dimensions and required coupling height.
- Hook model, standard versus air-compensated operation, and air supply requirements.
- Finish, lighting, wiring and gladhand configuration.
- Delivery location, unloading arrangements and current production/shipping lead time.
Capacity note: 45-ton and 50-ton descriptions identify the selected pintle hook option. They do not establish the capacity of the finished truck installation. The hook, mounting structure, attachment, vehicle and trailer ratings must all be suitable for the intended application.
Frequently asked questions
Can I order a painted assembly?
Yes. Choose welded and painted for the black-finished assembly. Truck attachment and gusset welding are still completed by the installer.
Can I add lights or angled gladhands?
Yes. An LED light kit and 45-degree gladhand upgrade are available. Confirm the exact configuration when requesting your quote.
How do I place an order?
Call 218-384-3734 or send your configuration to Don Dens Sales. We will help confirm fit, options, lead time and shipping before the order is finalized.
