Product Overview
Plan your Allison wet-kit installation from a defined component package. This Hyva kit combines a PTO, pump, tipping valve, mounting components and specified fittings. It is listed for Allison 3000–4500 RDS applications; the exact transmission and installation must be checked before ordering.
Kit identification
| SKU | HYVA.KIT.3000rds |
|---|---|
| Brand | Hyva |
| Listed transmission range | Allison 3000–4500 RDS; verify the exact transmission model and PTO provision |
| PTO electrical kit | 12V, part 021417405 |
| Pump part number | 14571341K01 |
| Tipping valve | 14767756 with chassis mounting kit 14735208 |
Included components
| Qty | Part number | Component |
|---|---|---|
| 1 | 021201008 | Allison PTO |
| 1 | 021451006 | PTO mounting kit |
| 1 | 021419750 | Allison TBI kit |
| 1 | 021417405 | 12V PTO electrical kit |

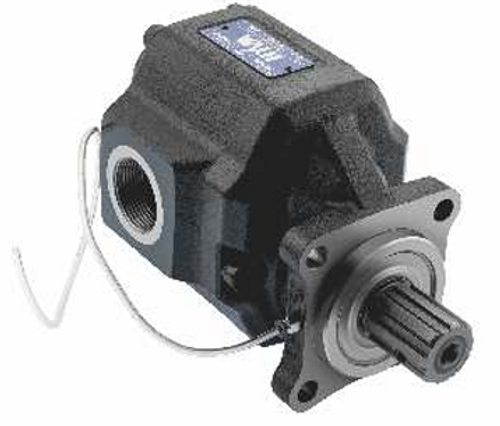

| 1 | 14571341K01 | 085L gear pump |
| 1 | 14767756 | HT1220 tipping valve |
| 1 | 14799321 | 1-inch MJIC × 1-inch FBSPP adaptor |
| 2 | 01317925 | Hydraulic adaptors |
| 2 | 01313848 | 1-inch bonded seals |
| 1 | 14735208 | HT1220 chassis mounting kit |
Check your truck and hydraulic requirements
- Provide the transmission data-plate model/serial number and truck VIN.
- Confirm PTO mounting provision, required output speed/rotation and chassis clearance.
- Match required hydraulic flow and operating pressure to the installed pump and PTO specifications.
- Confirm reservoir capacity, hose routing, return/filtration arrangement and hoist compatibility.
- Identify cab-control, electrical and transmission-programming requirements for the truck.
Plan the complete installation
Use the component list above to check your scope. Reservoir, hoses, cab controls and vehicle installation labor are not listed as supplied components. Confirm any additional parts before ordering rather than assuming this package includes every item needed for every truck.
Fitment and ordering help
Have the Allison data-plate information and hydraulic application ready; we can help review fitment and any additional installation components. Call 218-384-3734 or contact Don Dens Sales. Include the SKU, your application and delivery ZIP code so we can help check the part and shipping requirements.
